FusionDC1000A

Prefabricated Modular DC

For small equipment rooms in government, education, energy, finance, transportation, and carrier sectors

Request Pricing

FusionDC1000A Details

Overview

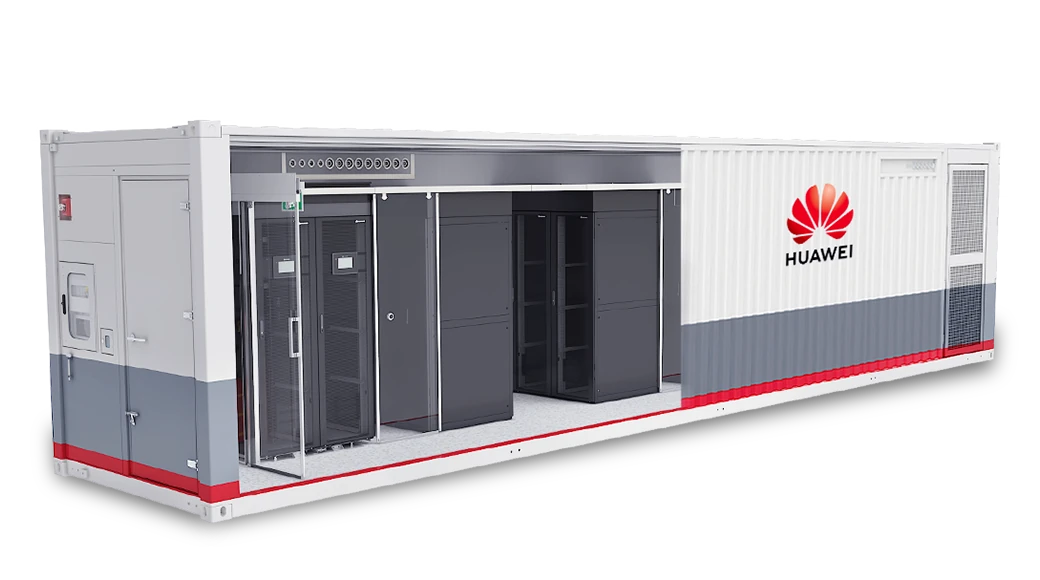

FusionDC1000A is a prefabricated all-in-one solution for outdoor edge DC. The solution integrates power, cooling, monitoring, firefighting, and cabinet systems into an ISO standard 40ft module. All facilities are prefabricated and pretested in the factory, which enable plug-and-play deployment. It is with strong ability of earthquake/wind/dust/water-proof and support long-term outdoor running.

Overview

Highlights

01

Simple

Prefabrication design, one DC per container, and one-stop delivery, enabling one-day onsite installation and making infrastructure plug-and-play

02

Green

Integration of smart cooling and intelligent power supply and backup, achieving full-link high efficiency and lower energy consumption

03

Smart

Intelligent management system, realizing full-link 3D visualization, intelligent O&M, and unattended data center operation

04

Reliable

With a 25-year lifespan, the enclosure meets NEBS GR-63-CORE Zone 3 seismic requirements, IP65 ingress protection, and Beaufort Force 12 wind resistance, guaranteeing reliable outdoor operation

Technical Specifications

FusionDC1000A
Specification IT-N+X-380V · IT-2N-380V-Tier III · IT-2N-380V-(Non-Tier III)
Dimensions of Prefabricated Module (L×W×H, mm) 12192×2438×2896 · 12192×2438×2896 · 12192×2438×2896
Power Architecture N+X · 2N · 2N
Input Voltage 380/400/415 V±10% · 380/400/415 V±10% · 380/400/415 V±10%
Backup Time 7 min · 14 min · 14 min
Cooling Mode In-row DX · In-row DX · In-row DX
Power Density 6-9kW/R · 6-9kW/R · 9kW/R
Number of Cabinets 8 · 6 · 6
Max IT/CT Power 54 kW · 54 kW · 54 kW
