FusionModule2000
Smart Modular Data Center
For small- and medium-sized DCs of enterprises, banks, governments, carriers, and education and healthcare organizations
FusionModule2000 Details

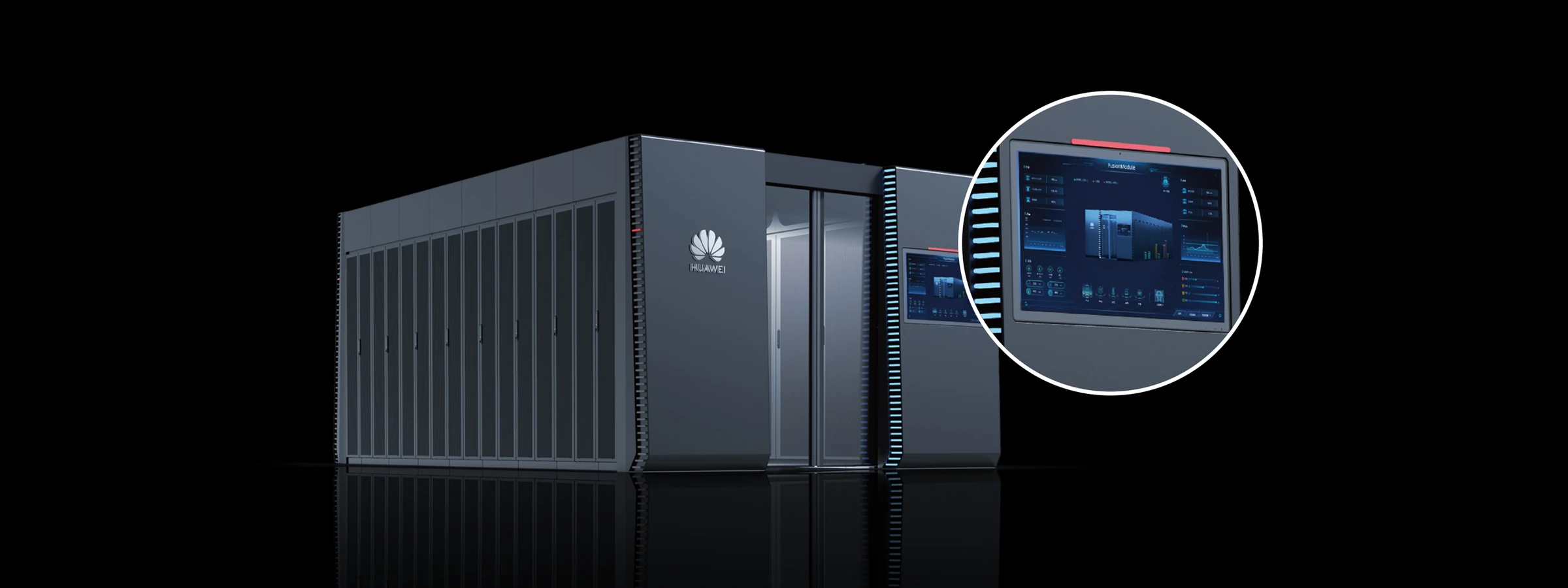

43 Inch Smart Screen
Clear display of the layout, power distribution, cooling information in the equipment room

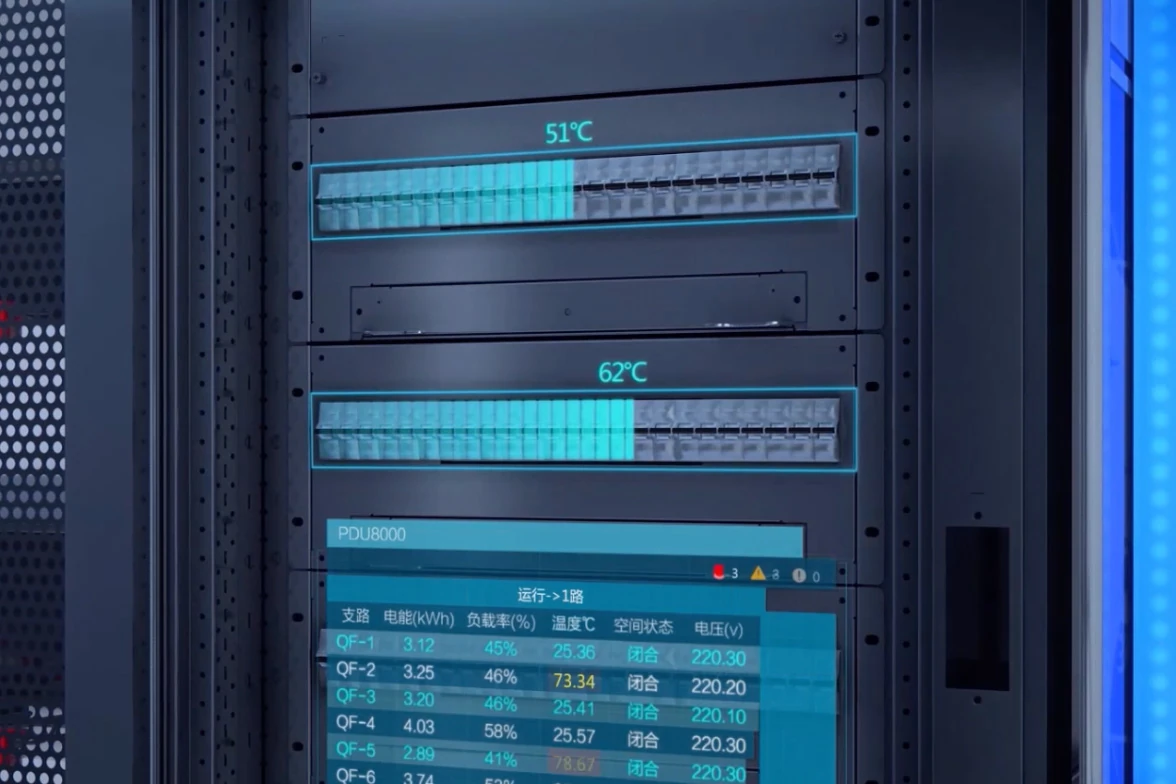

Temperature Warning, Highly Reliable
75+ temperature measurement points in the PDF, ensuring the reliable operation of facilities
Highlights
Reducing the PUE to as low as 1.111 by maximizing free cooling sources

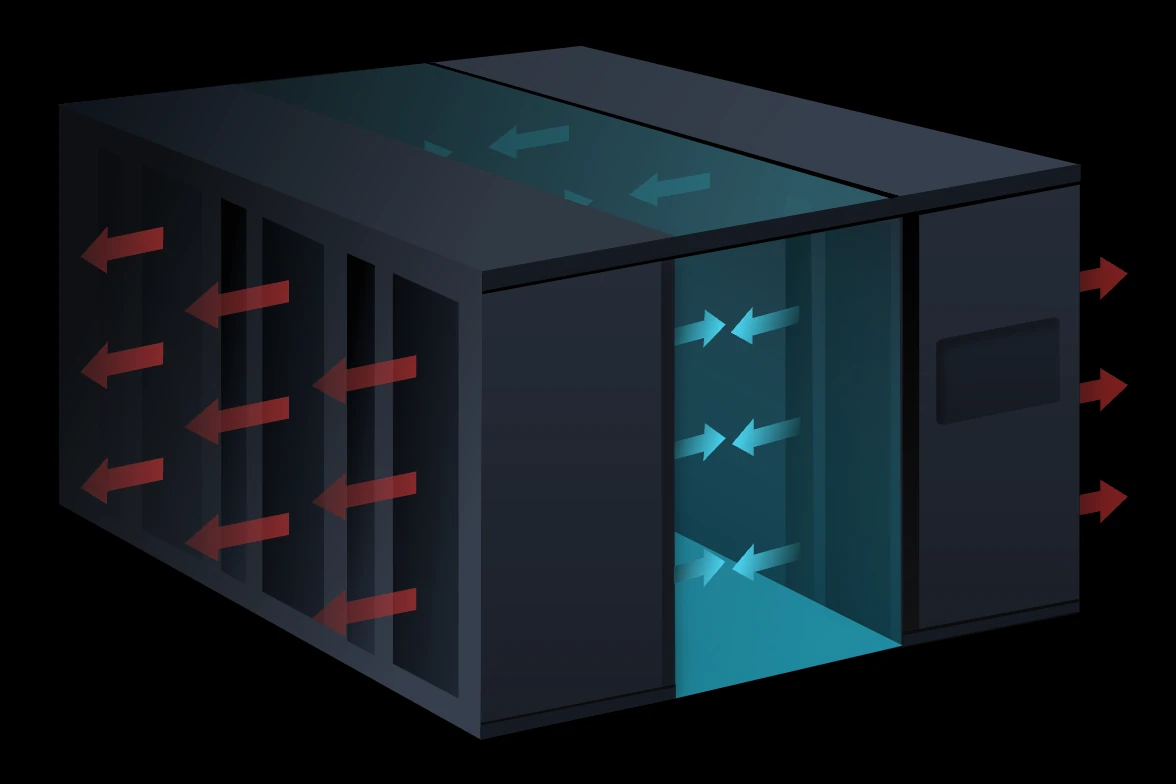

Isolation of cold and hot air flows, enabling precise local cooling
Unique continuous cooling architecture, ensuring the reliable operation of both cooling and IT equipment
UPS, IT PDU and air conditioner PDU integrated into one cabinet, ultra-high power density 180 kW/cabinet
Technical Specifications
| Model | FusionModule2000(380V) · FusionModule2000(208V) |
|---|---|
| Input Voltage | 380 V AC, 50/60 Hz, 3 Ph+N+PE · 208 V AC, 60 Hz, 3Ph+N+PE |
| Rack Quantity | Dual-row: ≤ 48; single-row: ≤ 24 · Dual-row: ≤ 48; single-row: ≤ 24 |
| IT Load | ≤ 310 kW · ≤ 170 kW |
| Aisle Containment | Cold or hot aisle containment · Cold or hot aisle containment |
| Dimensions(LxWxH, mm) | Single-row cold/hot aisle containment: Lx2400x2410, L ≤ 15 m Lx2300x2410, L ≤ 15 m Lx2400x2610, L ≤ 15 m Dual-row cold/hot aisle containment (LxWxH): Lx3600x2410, L ≤ 15 m Lx3400x2410, L ≤ 15 m · Single-row cold/hot aisle containment: Lx2400x2410, L ≤ 15 m Lx2300x2410, L ≤ 15 m Lx2400x2610, L ≤ 15 m Dual-row cold/hot aisle containment: Lx3600x2410, L ≤ 15 m Lx3400x2410, L ≤ 15 m |
| Operating Temperature | -40°C to +55°C · -40°C to +55°C |
