FusionModule500
Smart Modular Data Center
For small-sized DCs of financial institutions, governments, education and medical organizations, transportation and energy sectors
FusionModule500 Details

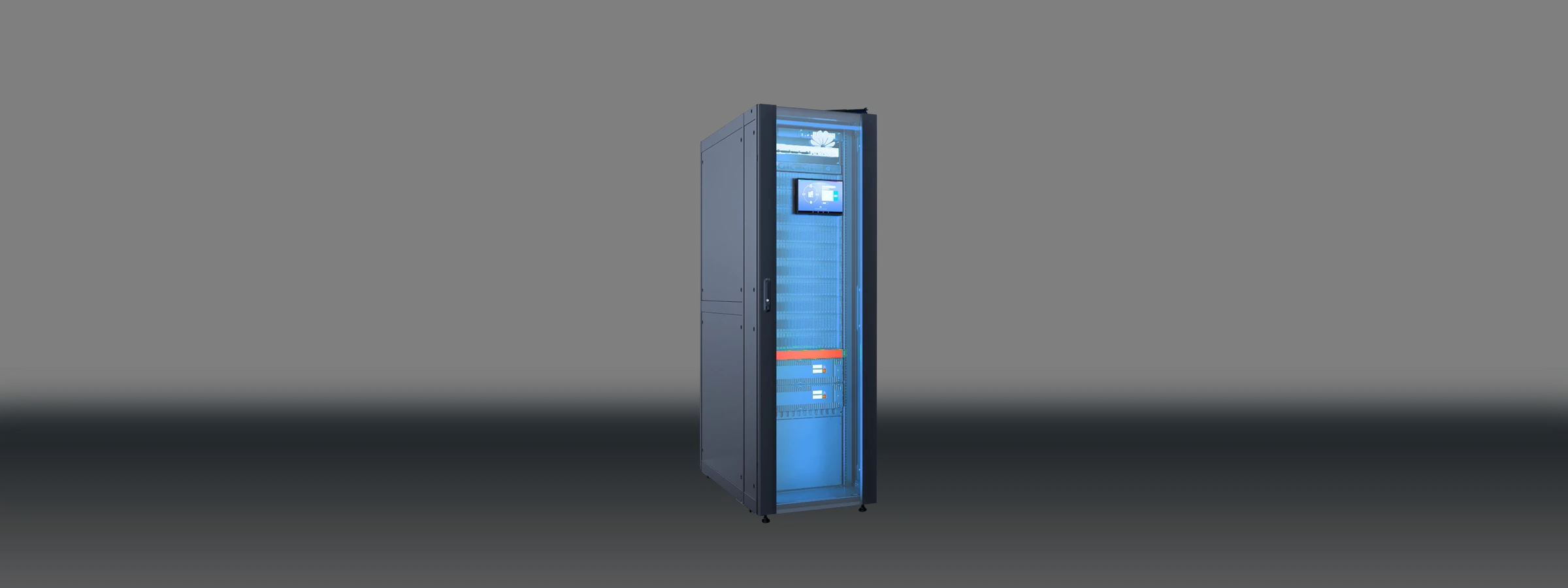

Contained Cabinet, Efficient Cooling
Cold and hot aisle containment that contains air flow, delivering more effective cooling and reducing energy consumption

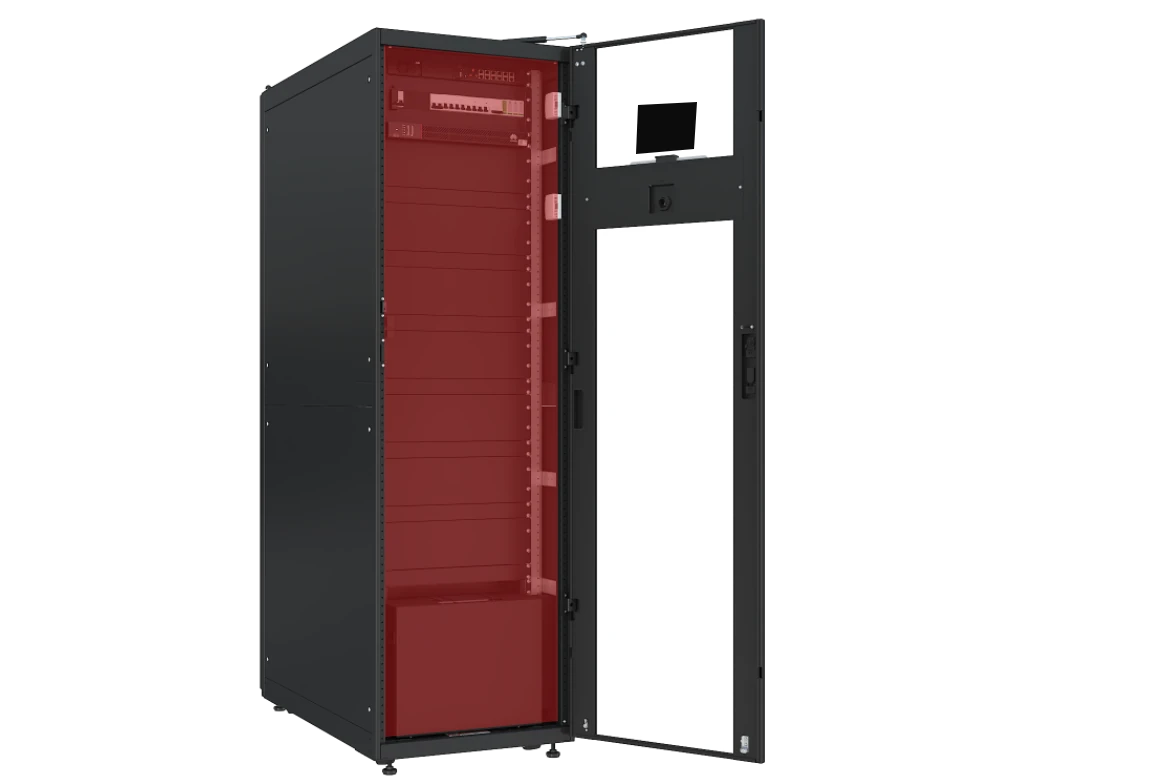

Auto Door Opening, Emergency Heat Dissipation
Auto door opening and fire control linkage design that actively responds to high temperature and smoke alarms, providing more effective heat dissipation and faster emergency response to fire and overheating
Highlights

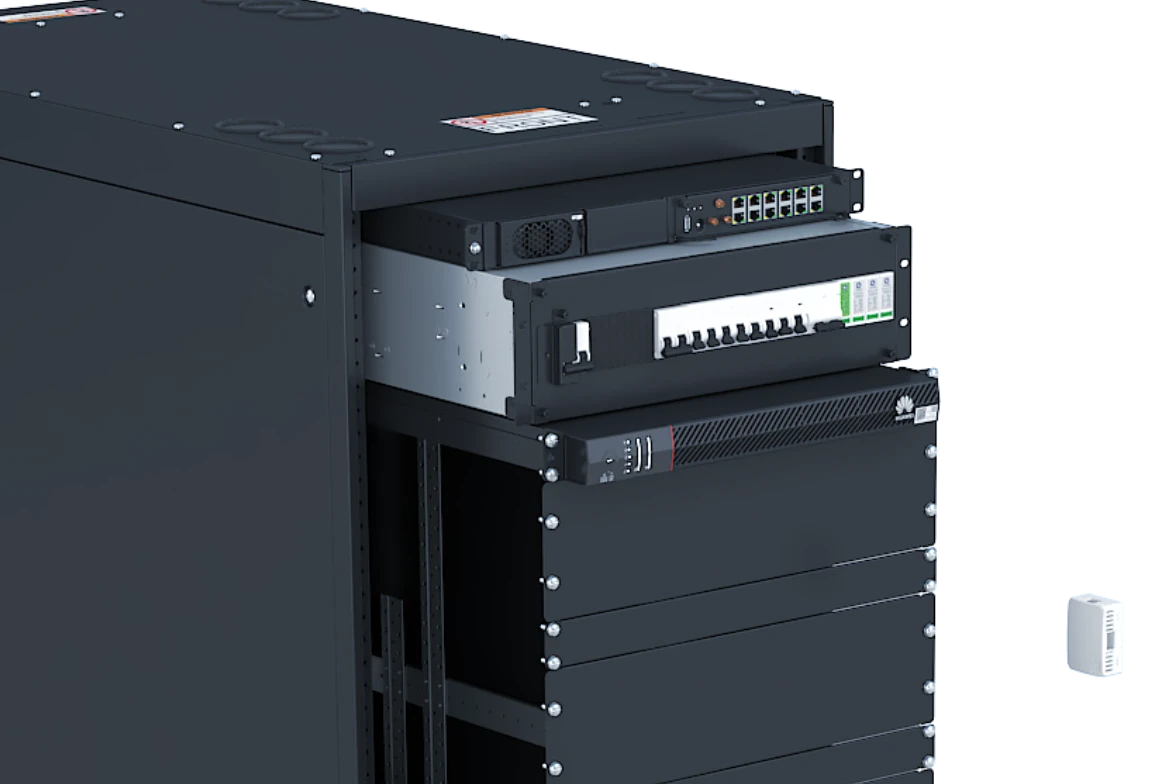

Modular and pre-integrated PDU, UPS, monitoring module, and cooling system, allowing easy onsite installation and commissioning and achieving fast service rollout
No outdoor unit, connecting pipes, welding, or refrigerant, significantly saving installation time and space
Technical Specifications
| Specification | Value |
|---|---|
| Model | FusionModule500 |
| Aisle Containment | Cold and hot aisle containment |
| Input Voltage | 220 V AC, 50/60 Hz, 1 Ph+N+PE |
| UPS Capacity | 6 kVA |
| Cooling Capacity | 3.5 kW |
| IT Load | ≤ 3 kW |
| Operating Temperature | 0-40°C |
| Dimensions(W×D×H, mm) | 600×1100×2000 |
