FusionModule800
Smart Modular Data Center
For small-sized DCs of financial institutions, governments, education and medical organizations, transportation and energy sectors
FusionModule800 Details
Auto Door Opening, Emergency Heat Dissipation
Auto door opening and fire control linkage design that actively responds to high temperature and smoke alarms, providing more effective heat dissipation and faster emergency response to fire and overheating
Contained Aisles, Efficient Cooling
Cold and hot aisle containment that contains cold and hot air flow and wet film humidifying technology that delivers better cooling effect, reducing energy consumption
Highlights

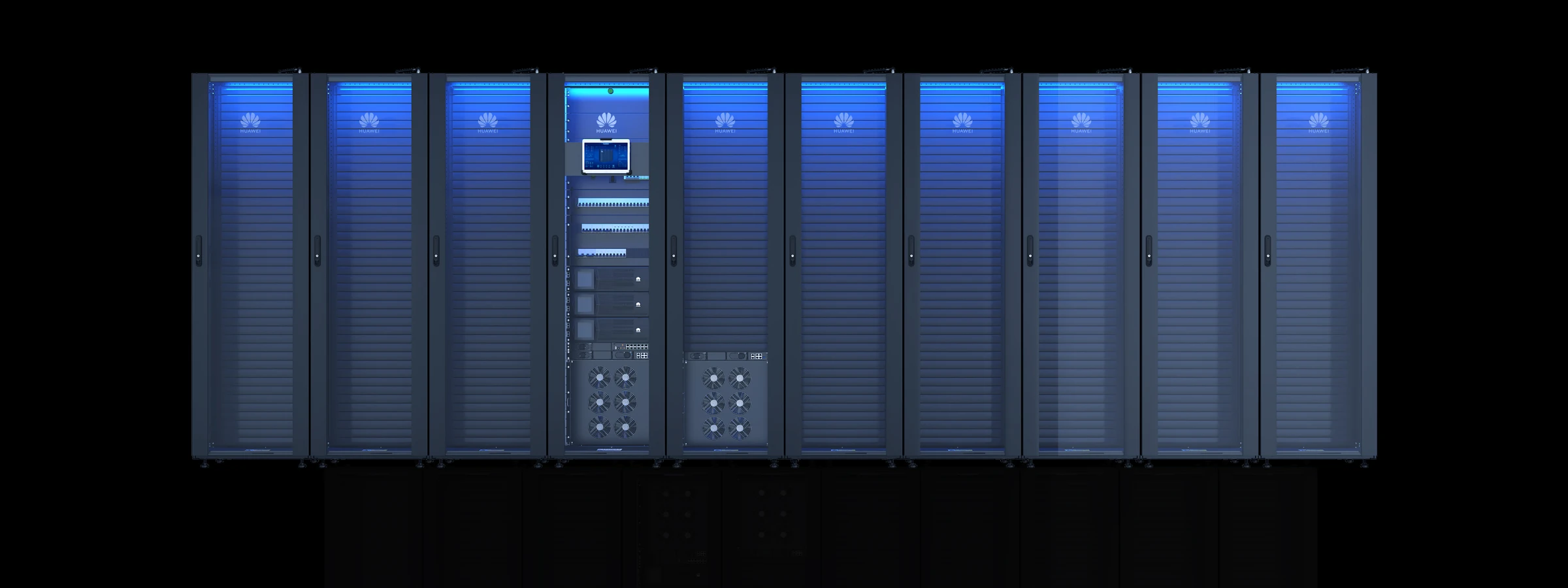

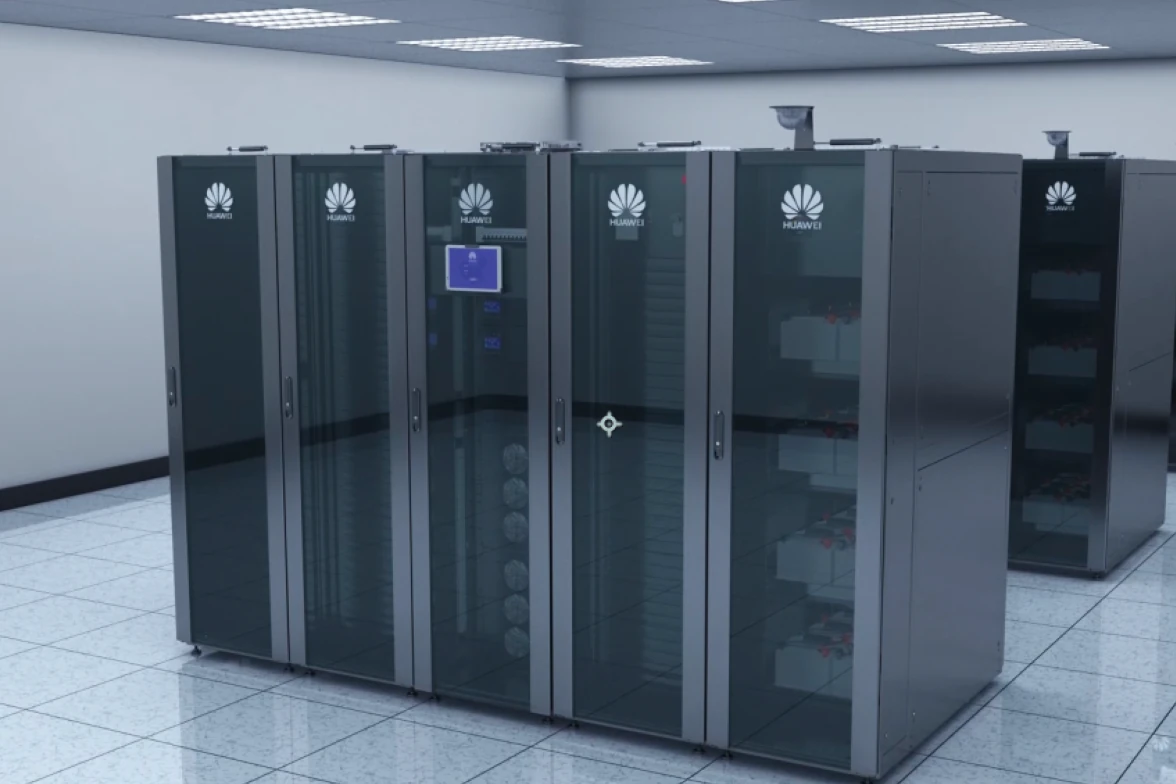

Prefabricated and pre-integrated UPS, monitoring module, and cooling system, and only simple cabinet combining required onsite, saving much time in design and installation
Highly integrated standard solution that supports the in-cabinet fire extinguishing module, making services available at power-on and simplifying deployment
One or two cabinets saved compared to traditional DCs, allowing for more flexible layouts and efficient space management
Technical Specifications
| Specification | Value |
|---|---|
| Model | FusionModule800 |
| Input Voltage | 380 V AC, 50/60 Hz, 3 Ph+N+PE |
| Aisle Containment | Cold and hot aisle containment |
| Rack Quantity | 1-15 |
| IT Load | 40 kW |
| Operating Temperature | -20°C to +45°C |
| Dimensions(W×D×H, mm) | (600-9000)×1350×2000 |
