FusionPower6000
PowerPOD
Indoor power supply and distribution system designed for medium- and large-sized traditional building DCs
FusionPower6000 Details
High Density, One Power Supply System Per Row
Component integration, fewer cabinets and smaller footprint; single-row deployment, free of internal cable connections and cable trays
Ultrahigh-density UPS
Module restructuring increases power density — 50 kVA/3 U → 100 kVA/3 U, doubling power density.
Flap load switch
Patented small-sized disconnector, reducing the width by 80%.
Modular feeder cabinet
50% less depth and 70% less volume, yet 100% higher density.
Hot-swap Modules for Seamless Maintenance
Fully modular architecture, ensuring stability and simplifying maintenance
Highlights
Intelligent monitoring of capacitor capacitance and fan speed, predicting EOL one year in advance.

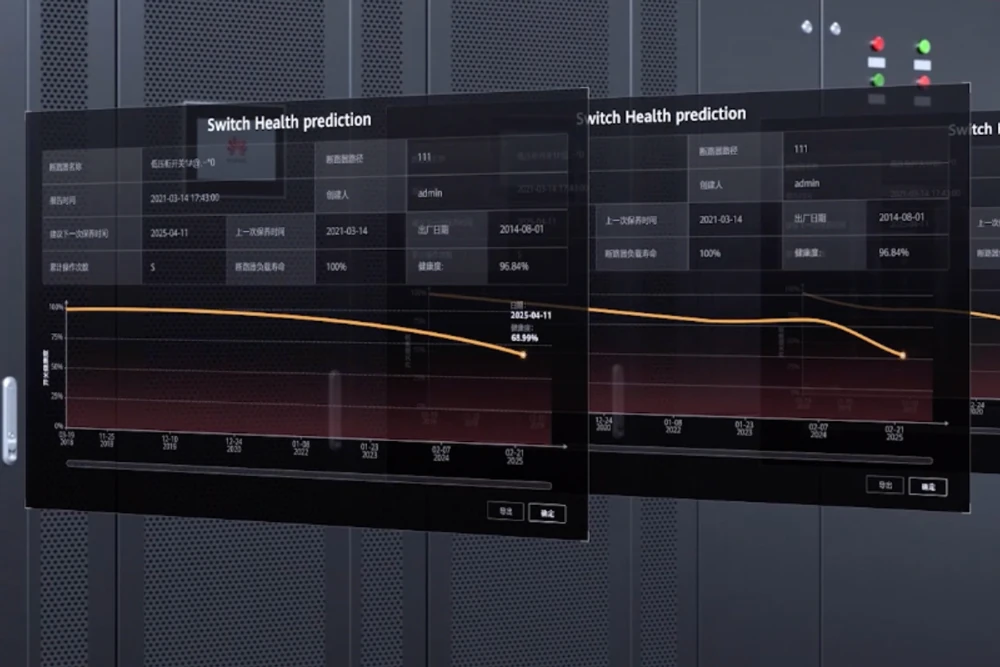

Cooperating with ABB to construct large SOH database models for circuit breakers

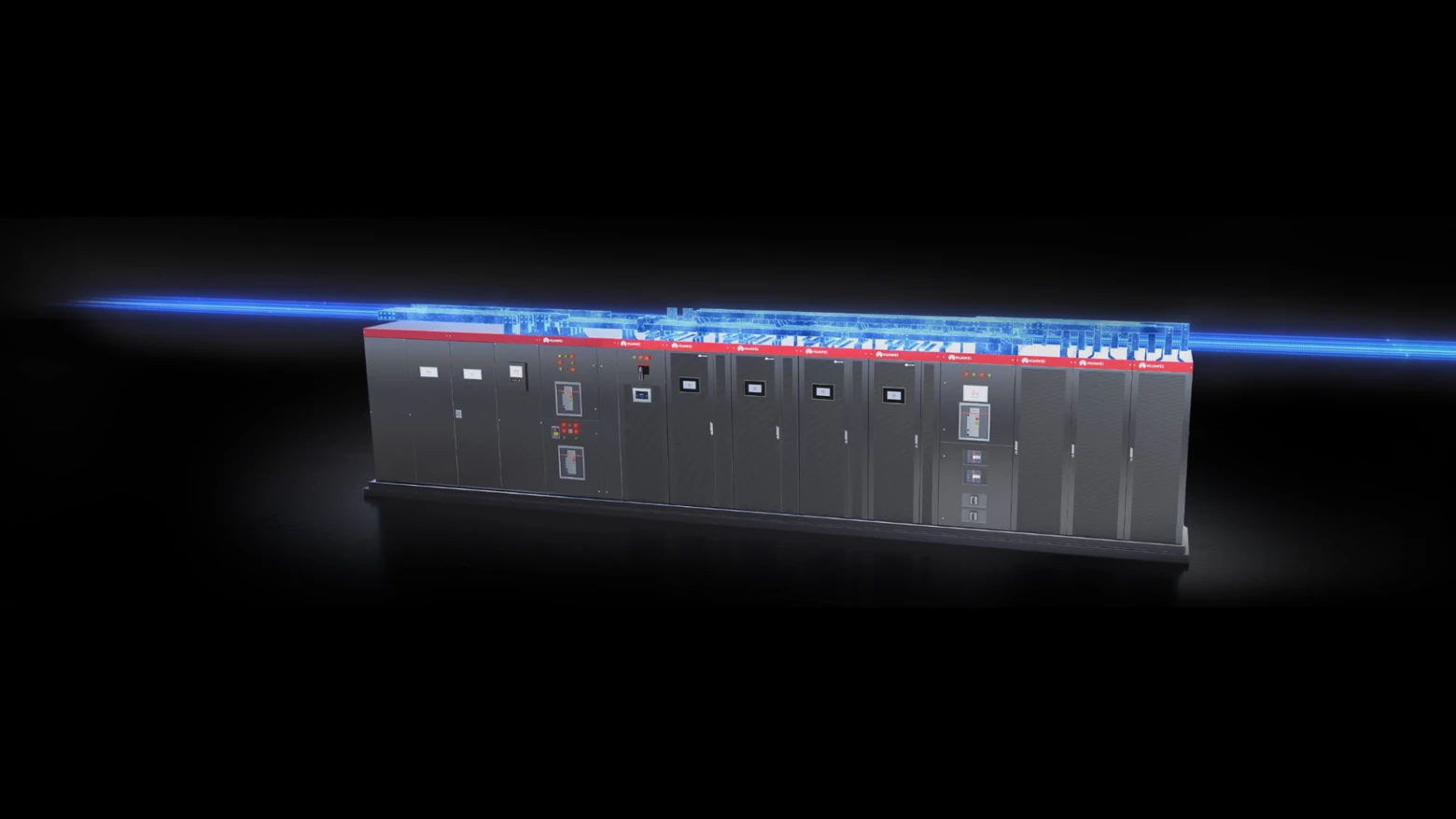

S-ECO mode achieving maximum efficiency and lower operational expenses.
150+ NTC temperature measuring points and AI DNN algorithms, predicting overtemperatures at key nodes

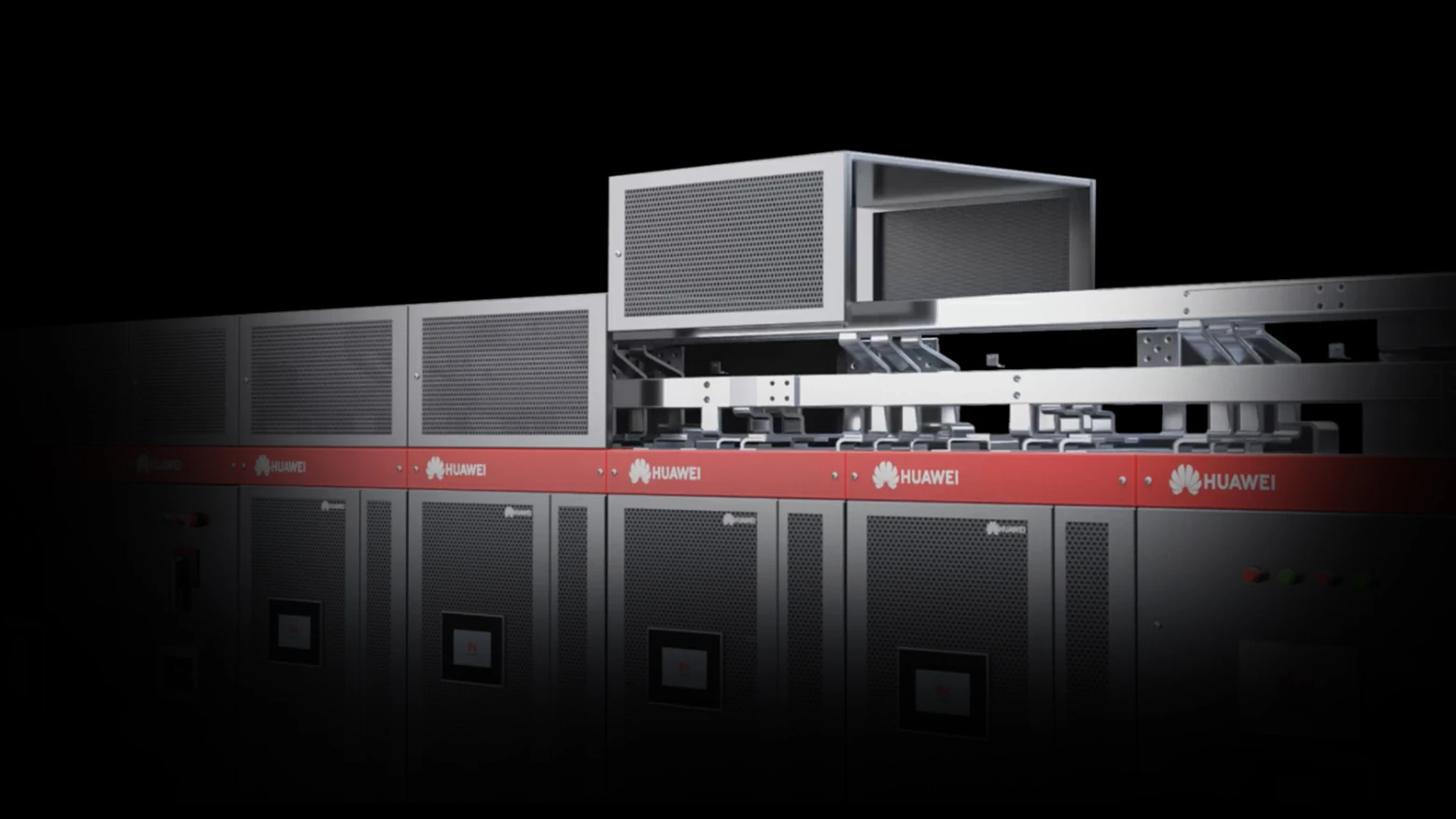

Prefabricated and pre-commissioned key modules, plug-and-play and controllable engineering quality
Technical Specifications
| Series | FusionPower6000 for IT only · FusionPower6000 for IT & Mechanical load |
|---|---|
| Capacity | 2.5 MVA · 2.0 MVA · 2.5 MVA · 2.0 MVA |
| Module Specifications | 100 kW/3U · 100 kW/3U · 100 kW/3U · 100 kW/3U |
| Output Power Factor | 1 · 1 · 1 · 1 |
| Efficiency (Double Conversion Mode) | up to 96.1% · up to 96.1% · up to 96.1% · up to 96.1% |
| Efficiency (S-ECO Mode) | up to 98.4% · up to 98.4% · up to 98.4% · up to 98.4% |
| S-ECO Mode | Supported · Supported · Supported · Supported |
| External dimensions (HxWxD) | 2600×10000×1000 · 2600×7000×1000 · 2600×12600×1000 · 2600×12000×1000 |
