Smart Optical ONUs for Every Deployment

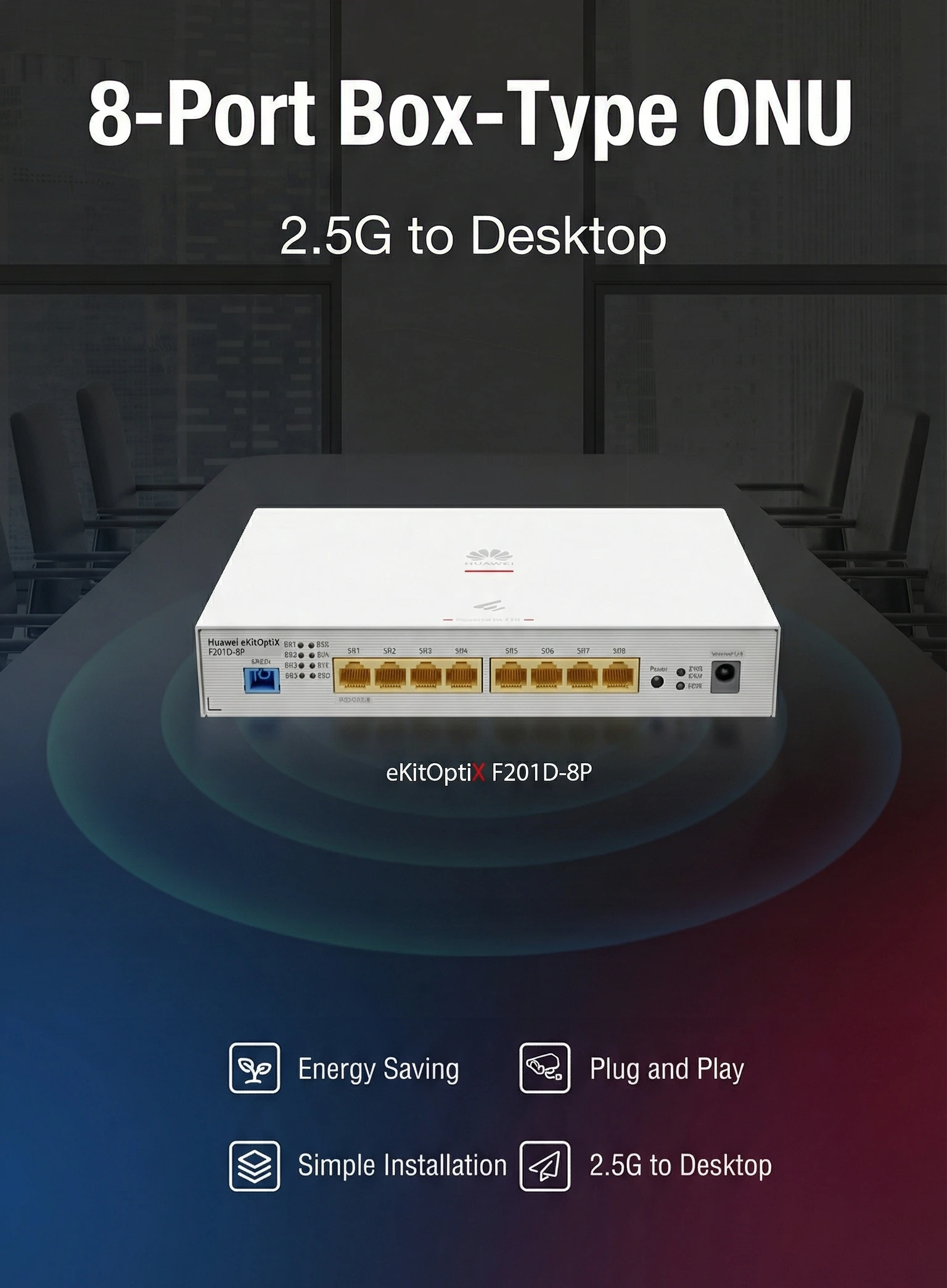

HUAWEI eKitOptiX F201D-8P

Enterprise-Grade 8-Port PoE+ ONU — Campus & Video Backhaul

The eKitOptiX F201D-8P is the edge-network workhorse for security camera networks and large office clusters. With 8 Gigabit PoE+ ports and 120W total power delivery, it eliminates the need for separate power cables while maintaining enterprise-grade reliability.

• 8 × GE Ports with PoE/PoE+: Directly power cameras, VoIP phones, wireless APs, and other connected devices
• 120W Total Power Output: Up to 30W per port for high-power enterprise deployments
• Reliable Video Backhaul: SC/UPC GPON delivers 2.488 Gbit/s downstream and 1.244 Gbit/s upstream with -5°C to +45°C stability

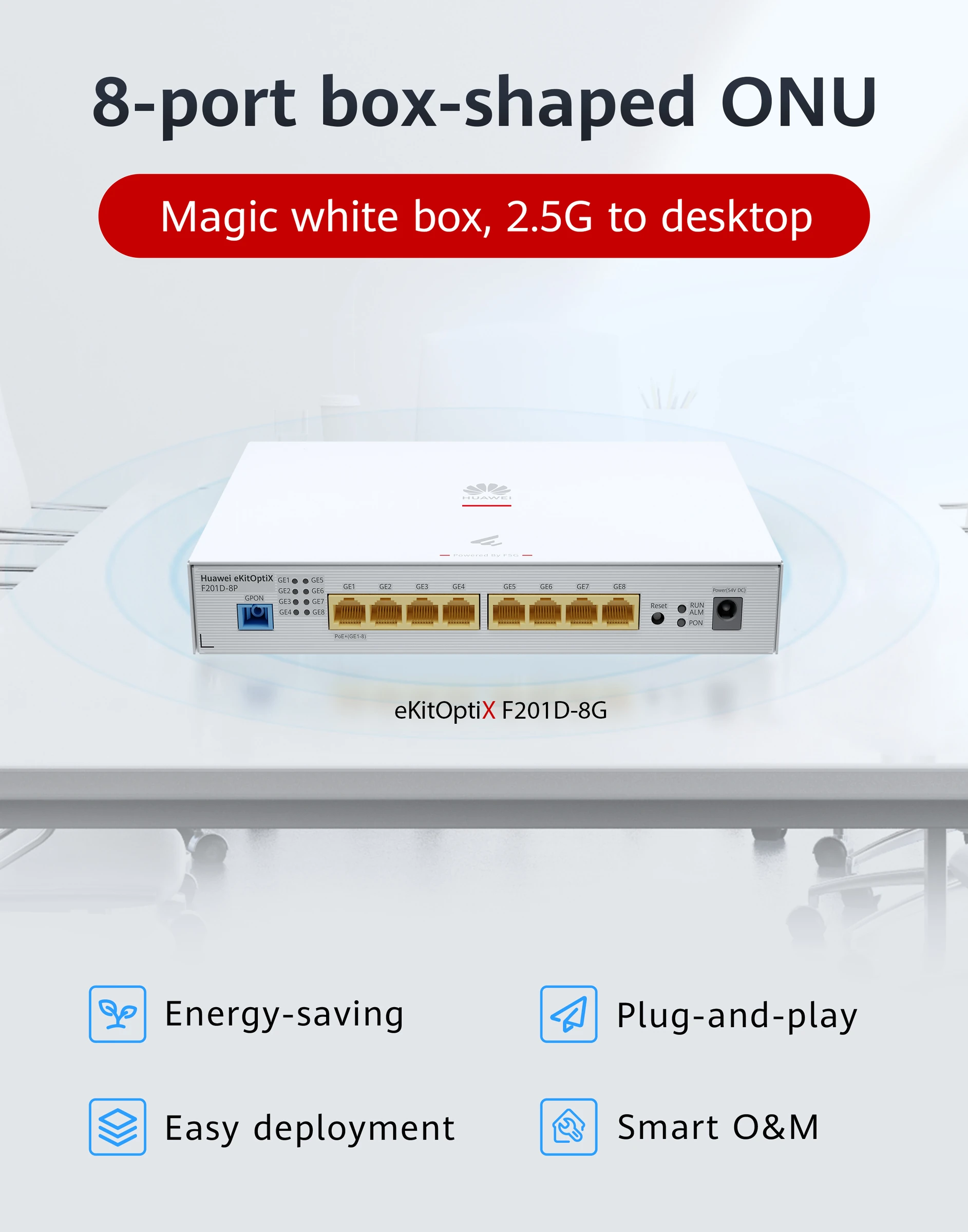

HUAWEI eKitOptiX F201D-8G

High-Density 8-Port Gigabit ONU — All-Optical Connectivity for Enterprise Campus

Secure, high-speed GPON bridging with eight dedicated GE ports—designed for efficient data and video backhaul in modern SMEs and offices where devices have their own power source, making this cost-effective alternative ideal for streamlined deployments.

• 8 Dedicated GE Ports: Provides high-quality, stable voice, data, and HD video services to eight independent wired workstations or network devices
• Cost-Effective Performance: No PoE overhead—ideal for environments where PCs, printers, and server clusters have their own power source
• Robust Environmental Adaptability: Wide operating range from -10°C to +55°C with 6 kV common mode surge protection on both GE and AC power ports

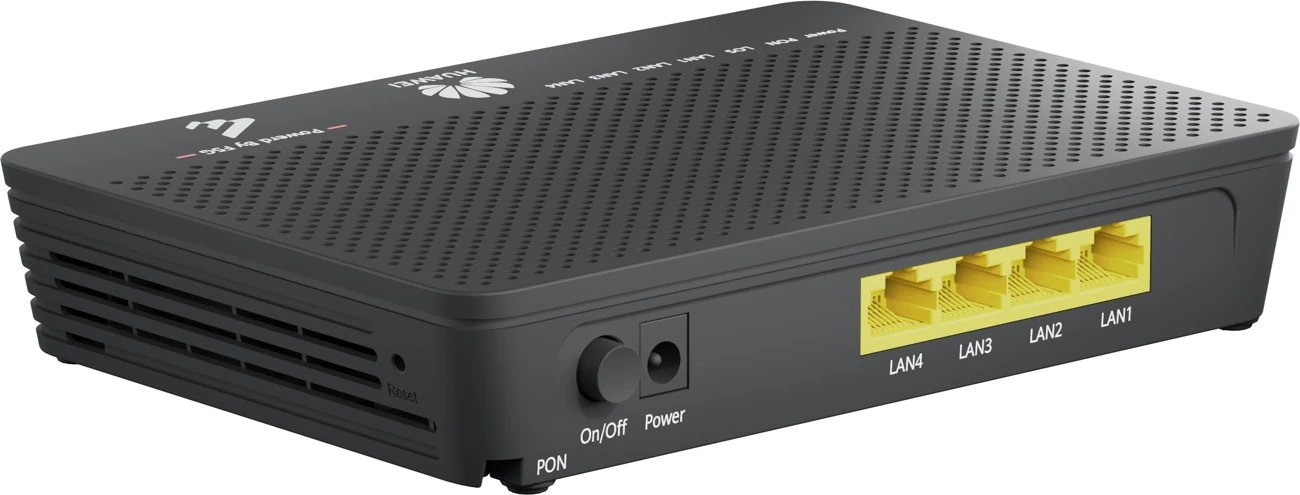

HUAWEI eKitOptiX F100D-4G

Ultra-Broadband Connectivity in a Compact 4-Port ONU

Future-oriented bridging technology for high-performance data and HD video services—the perfect all-optical solution for desks and small offices. The F100D-4G delivers versatile fiber access with compact efficiency, bridging the gap between individual users and small workstations with enterprise-grade reliability.

• Seamless Data & Video: Engineered with high-performance forwarding capabilities to ensure an ideal HD video service experience
• Gigabit Access: Equipped with 4 × GE ports to provide stable, wired gigabit internet to multiple devices simultaneously
• Space-Saving Form Factor: At only 30 mm thick and weighing roughly 220 g, it fits easily into tight spaces without cluttering the workspace

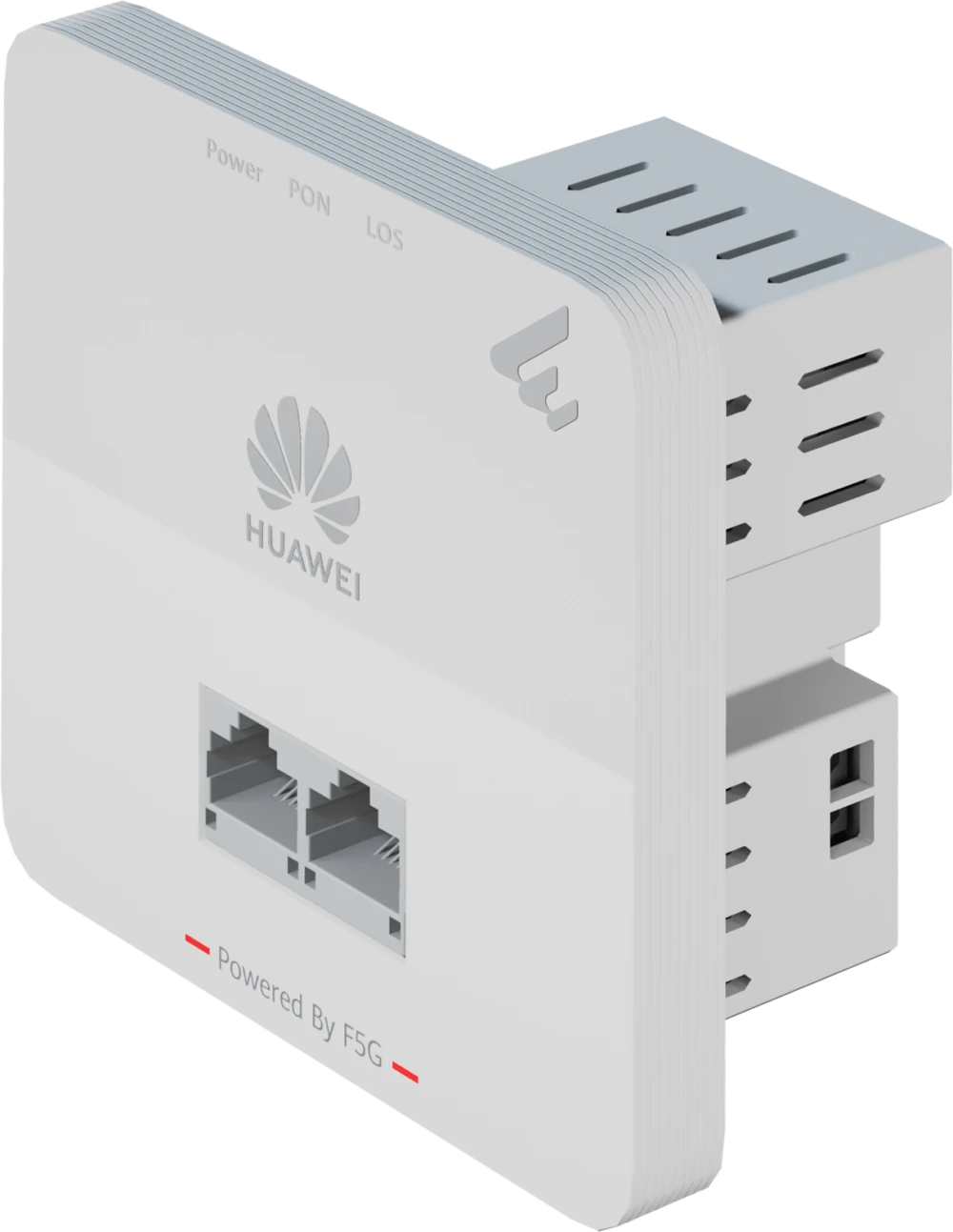

HUAWEI eKitOptiX F100P-2G

Compact Dual-Port PoE ONU: Big Power in a Small Footprint

The ideal all-optical solution for powering remote Wi-Fi APs and IP cameras with integrated PoE+ and ultra-reliable GPON backhaul. Don't let the size fool you—this is the ultimate compact power injector for isolated devices like a single high-end security camera or a high-performance Wi-Fi AP in a remote corner of an office.

• Dual PoE+ Ports: Delivers up to 30W per port (PoE+), allowing you to power cameras and access points without needing a local power outlet
• 60W Total Budget: Plenty of overhead to ensure stable performance even for power-hungry PTZ cameras or Wi-Fi 6 APs
• Ultra-Compact Profile: The smallest unit in the series—designed to be tucked away in ceiling voids, small junction boxes, or behind a TV/monitor
