All In One Energy Storage System — 100kW inverter with 225kWh LiFePO4 battery

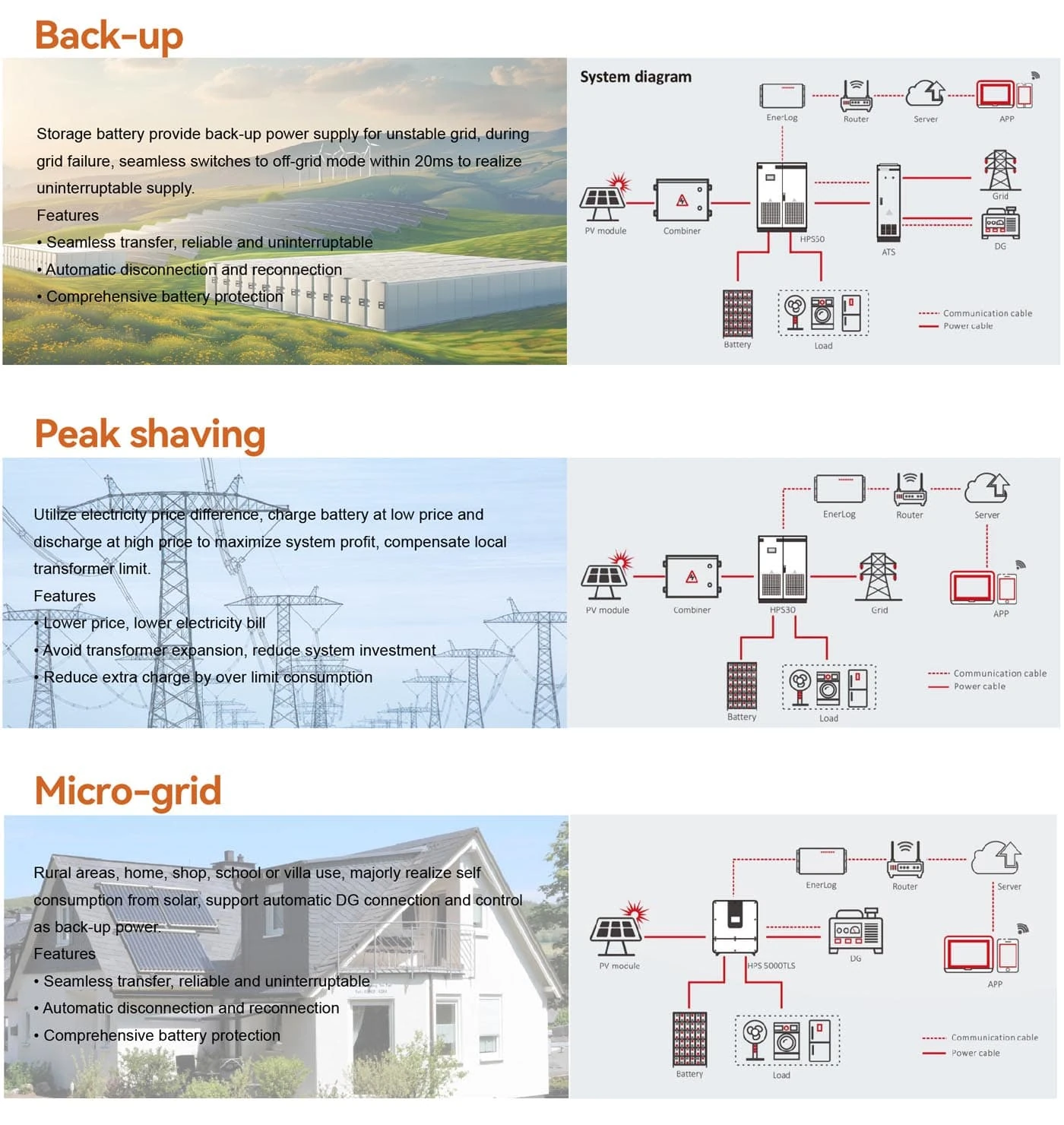

The Dawnice 100kW/225kWh ESS integrates a high-efficiency 100 kW inverter with a 225 kWh LiFePO4 battery bank (314Ah modules). Designed for commercial and industrial applications, it supports peak shaving, energy arbitrage and reliable backup power. The system features CAN/RS485 communications, HMI display for on-site monitoring, air cooling and IP54 rated outdoor protection for unattended field operation.
100 kW rated output with 116 kW maximum output, 50/60 Hz grid compatibility, high conversion efficiency (up to 98.5%) and low current distortion for stable integration with the grid.
IP54 enclosure, operating range -30°C to 55°C with derating above 45°C, and anti-corrosion options suitable for coastal installations.
Modular 1P224S configuration supports up to 10 units in parallel for larger energy capacities; integrated safety controls and cloud platform support simplify fleet management and fault analysis.
Safe and Reliable
Smart and Robust
≥6 Years Payback
Efficient & Flexible
Modular Design
Cloud Platform
High Efficiency
Real-Time Monitoring
Advanced Safety
Easy Maintenance
| Model | HZEB-ESS100P-225 |
|---|---|
| AC Rated Voltage | 230/400V |
| Voltage Deviation | ±15% |
| AC Output Type | 3W+N+PE |
| Rated Output Power (kW) | 100 kW |
| Max. Output Power (kW) | 116 kW |
| Max. Current (A) | 167 A |
| Rated Grid Frequency (Hz) | 50/60 Hz |
| Power Factor | 0.99 |
| Power Factor Range | -1 (leading) ~ 1 (lagging) |
| Current Distortion Rate | <2% (Rated Power) |
| DC Component | 0.50% |
| Max. Discharge Efficiency | 98.50% |
| Installation Altitude | ≤2000 m |
| Operating Temperature | -30°C ~ 55°C (derating >45°C) |
| Communication Interface | CAN; RS485 |
| Display Mode | HMI Display (Green: running / Red: alarm) |
| Model | HZEB-ESS100P-225 |
|---|---|
| Battery Type | LiFePO4 |
| Rated Voltage | 716.8 V |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 225.07 kWh |
| Available Energy (kWh @90% DOD) | 202.56 kWh |
| Max Charge/Discharge Current (A) | 157 A |
| Voltage Range | 627.2 V - 806.4 V |
| Configuration | 1P224S |
| Scalability | Up to 10 units in parallel |
| Relative Humidity | ≤90% |
| Cooling | Air Cooling |
| Operating Temperature Range (°C) | -30°C ~ 55°C (derating >45°C) |
| IP Rating | IP54 |
| Anti-corrosion Grade | C3 (Optional C5) |
| Dimension (W*D*H) | 1500 × 1353.4 × 2185 mm |
| Weight | 2540 kg |
| Cycle Life | ≥8000 Cycles (25°C, 0.5C/0.5C, 90% DOD, 70% EOL) |
| Warranty Period | 5 + 5 years |
| Cumulative Discharge Energy | 361.4 MWh |
| Certifications | UN38.3, MSDS, IEC62619 (CB), CE-EMC |
