Dawnice Rack-Mounted Battery
48V 200Ah LiFePO4 Lithium Battery
Model HZEB-HCT-10 | 10.50 kWh Rack-Mounted Energy Storage
HZEB-HCT-10 48V 200Ah Specifications
- Product Name: Dawnice 48V 200Ah LiFePO4 Lithium Battery
- Model Number: HZEB-HCT-10
- Nominal Voltage: 51.2V
- Configuration: 3.2V206Ah/16S1P
- Rated Energy: 10.50 kWh
- Capacity: 206Ah
- Scalability: Up to 6 parallel connections
- Communication Port: CAN/RS485
- Cycle Life: ≥6000 cycles @ 25°C, 80% DOD
- Design Life: ≥15 years @ 25°C
- Certification: UN38.3, IEC62619, CE, UL1973, UL2054
48 Volt 200Ah Battery Introduction

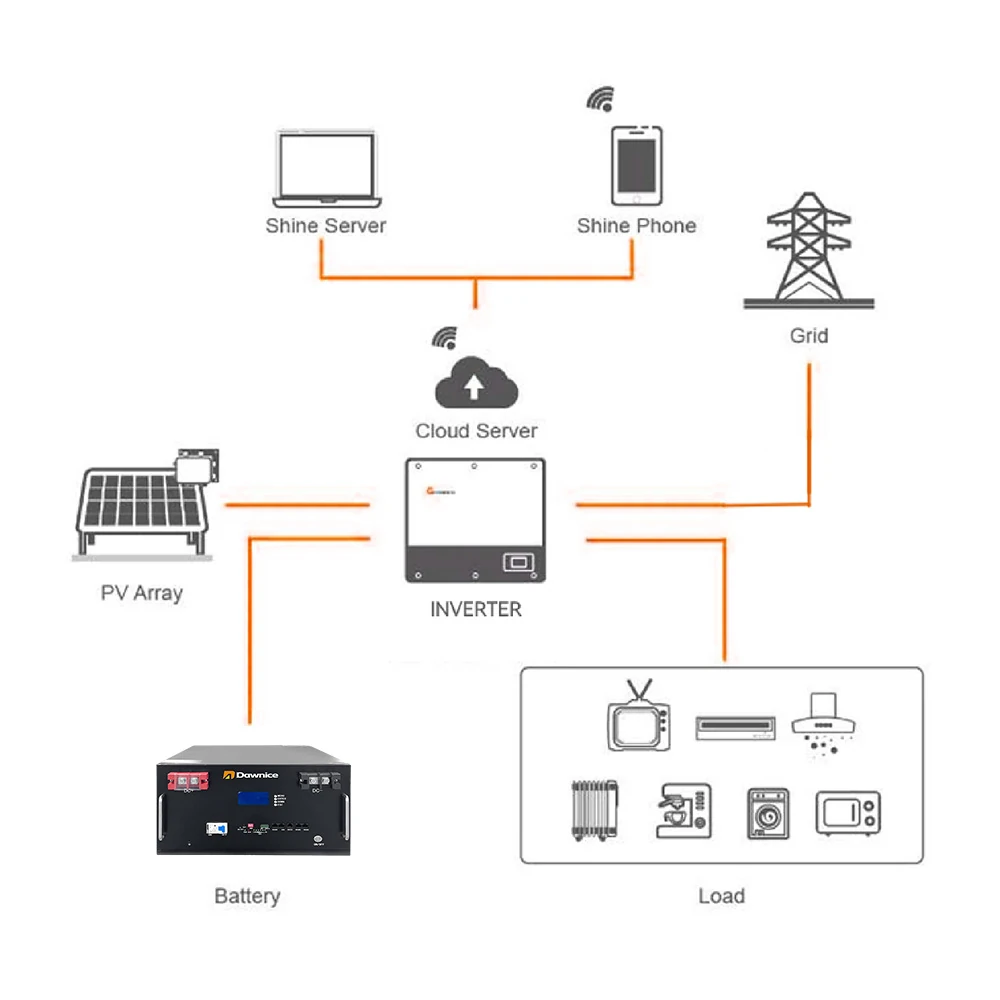

Connection Diagram
Provides backup power for factories, shopping malls, hotels, etc., supports peak-valley electricity price management, and reduces electricity costs.
48V 200Ah Lifepo4 Battery Stores solar energy generated during the day for use at night or on cloudy days, improving energy utilization.
Provides stable power supply to remote areas, supporting infrastructure such as healthcare, education, and communication.
Offers highly reliable backup power for servers and network equipment, ensuring data security.
- • Large-Scale Solar Systems: 48V 200Ah Lifepo4 Battery Stores solar energy generated during the day for use at night or on cloudy days, improving energy utilization.
- • Off-Grid Power Stations: Provides stable power supply to remote areas, supporting infrastructure such as healthcare, education, and communication.
- • Data Center Backup Power: Offers highly reliable backup power for servers and network equipment, ensuring data security.
HZEB-HCT-10 Technical Specifications
| Model | HZEB-HCT-10 |
|---|---|
| Nominal Voltage | 51.2V |
| Cell Model/Configuration | 3.2V206Ah/16S1P |
| Capacity (Ah) | 206Ah |
| Rated Energy (kWh) | 10.50kWh |
| Max Charge/Discharge Current (A) | 100A |
| Voltage Range (V) | 44.8~57.6V |
| Scalability | 6 parallel (For customization) |
| Communication | CAN/RS485 |
| Cycle Life | ≥6000Cycles@25℃,80%DOD |
| Design Life | ≥15Years(25℃) |
| Weight (kg) | 94kg |
|---|---|
| Dimension (L/W/H) mm | 432*650*267mm |
| Installation Mode | On the ground |
| IP Grade | IP20 |
| Safety (Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC |
|---|---|
| Safety (Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
| Protection | BMS,Breaker |
| Operating Temperature | Charge 0℃~50℃; Discharge -10℃~50℃ |
|---|---|
| Altitude (m) | ≤2000m |
| Humidity | ≤90% (Non-condensing) |
