Premium Rack-Mounted Battery
48V 300Ah LiFePO4 Lithium Battery
Model HZEB-HCT-15 | 14.34 kWh Rack-Mounted Energy Storage
HZEB-HCT-15 48V 300Ah Specifications
- Product Name: 48V 300Ah Lithium Battery
- Model Number: HZEB-HCT-15
- Nominal Voltage: 51.2V
- Configuration: 3.2V280Ah/16S1P
- Rated Energy: 14.34 kWh
- Capacity: 280Ah
- Scalability: Up to 6 parallel connections
- Communication Port: CAN/RS485
- Cycle Life: ≥6000 cycles @ 25°C, 80% DOD
- Design Life: ≥15 years @ 25°C
- Certification: UN38.3, IEC62619, CE, UL1973, UL2054

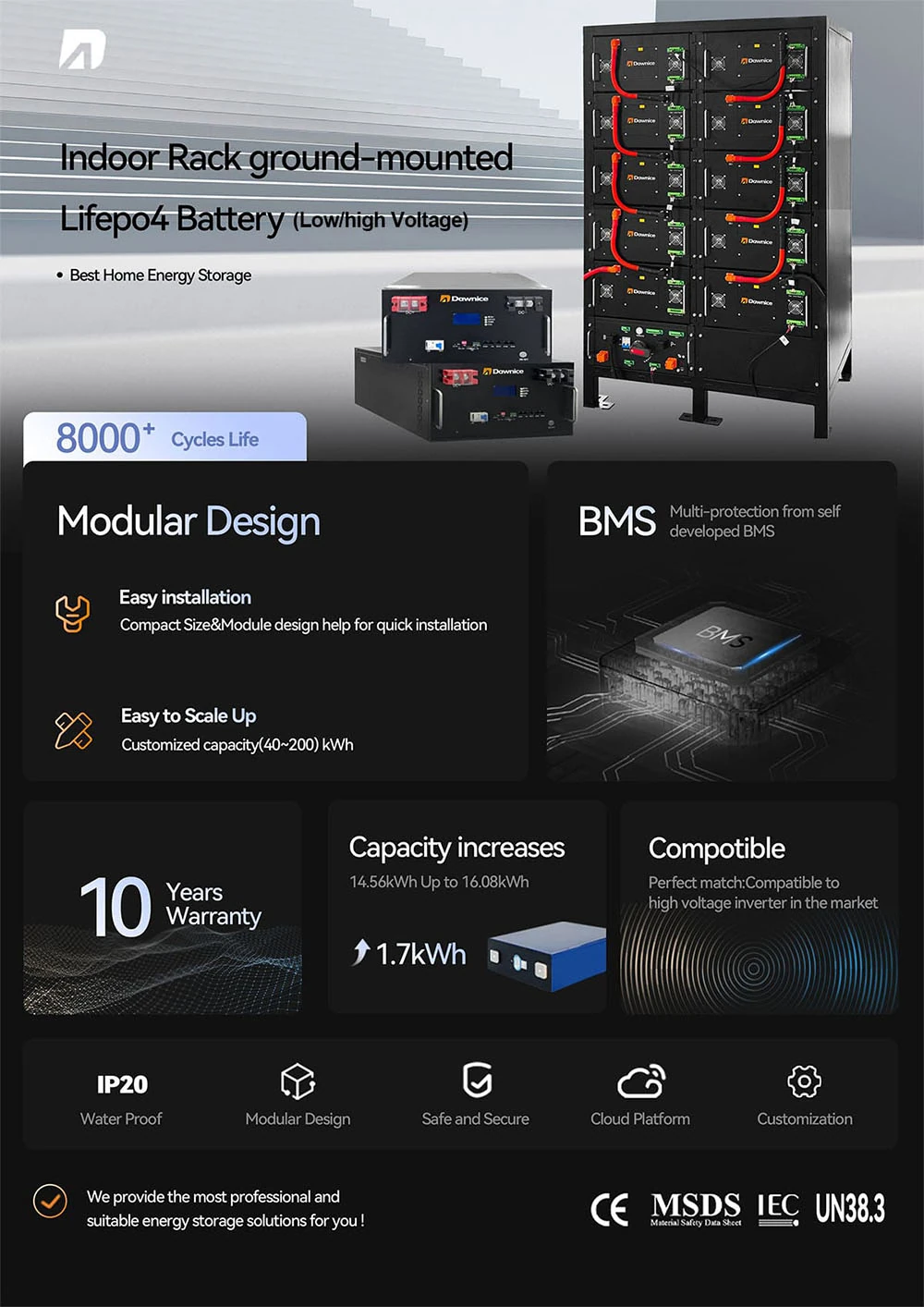

48V 300Ah Lithium Battery Introduction
Connection Diagram
With a 14.34 kWh energy capacity, the 48V 300Ah battery is designed for high-demand applications, making it ideal for large-scale energy storage systems.
Supports 150A discharge current (customizable), enabling it to power heavy machinery, data centers, and large-scale solar inverters.
Advanced battery management system maintains optimal performance across all operating conditions.
Scalable up to 6 parallel connections, allowing systems to expand up to 86.04 kWh for ultra-large energy storage needs.
Perfect for flexible and future-proof solar energy solutions in commercial and industrial applications.
- • Unmatched Energy Capacity With a 14.34 kWh energy capacity, the 48V 300Ah battery is designed for high-demand applications, making it ideal for large-scale energy storage systems.
- • High Power Output for Heavy-Duty Applications Supports 150A discharge current (customizable), enabling it to power heavy machinery, data centers, and large-scale solar inverters.
- • Ensures Stable Performance Even Under Peak Load Conditions Advanced battery management system maintains optimal performance across all operating conditions.
- • Modular Design for Scalability Scalable up to 6 parallel connections, allowing systems to expand up to 86.04 kWh for ultra-large energy storage needs.
- • Ideal for Projects Requiring Flexible and Future-Proof Solutions Perfect for flexible and future-proof solar energy solutions in commercial and industrial applications.
HZEB-HCT-15 Technical Specifications
| Model | HZEB-HCT-15 |
|---|---|
| Nominal Voltage | 51.2V |
| Sell model/Configuration | 3.2V280Ah/16S1P |
| Capacity(Ah) | 280Ah |
| Rated Energy(kWh) | 14.34kWh |
| Max.Charge/Discharge Current(A) | 100A/150A(For customization) |
| Voltage Range(Vdc) | 44.8~57.6V |
| Scalability | 6 parallel(For customization) |
| Communication | CAN/RS485 |
| Cycle Life | ≥6000Cycles@25℃,80%DOD |
| Design Life | ≥15Years(25℃) |
| Weight(kg) | 115kg |
|---|---|
| Dimension(L/W/H)(mm) | 432*795*267mm |
| Installation Mode | On the ground |
| IP Grade | IP20 |
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC |
|---|---|
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
| Protection | BMS,Breaker |
| Operating Temperature | Charge 0℃~50℃; Discharge -10℃~50℃ |
|---|---|
| Altitude(m) | ≤2000m |
| Humidity | ≤90% (Non-condensing) |
