Dawnice 10 kWh High Voltage Stackable Battery
Model HZEB-LCT-5/2S — 102.4V nominal, stackable modular design for homes.
Dawnice 10 kWh High Voltage Stackable Battery
- Product Name: Dawnice 10 kWh High Voltage Stackable Battery
- Model Number: HZEB-LCT-5/2S
- Capacity: 100Ah (10.24 kWh rated)
- Features: High-Quality LiFePO4 cells; Bluetooth remote access; Durable waterproof housing; Lightweight & modular setup
- Nominal Voltage: 102.4V (Operating range: 89.6–115.2V)
- Communication Port: RS485, CAN
- Cycle Life: ≥6000 cycles @25°C (80% DOD); 10 year warranty
- Certification: UN38.3, MSDS, IEC62619 (CB), CE-EMC
- Application: Home & residential energy storage
- Compatible Inverters: Deye, Growatt, Afore, Srne, Sol Ark and others

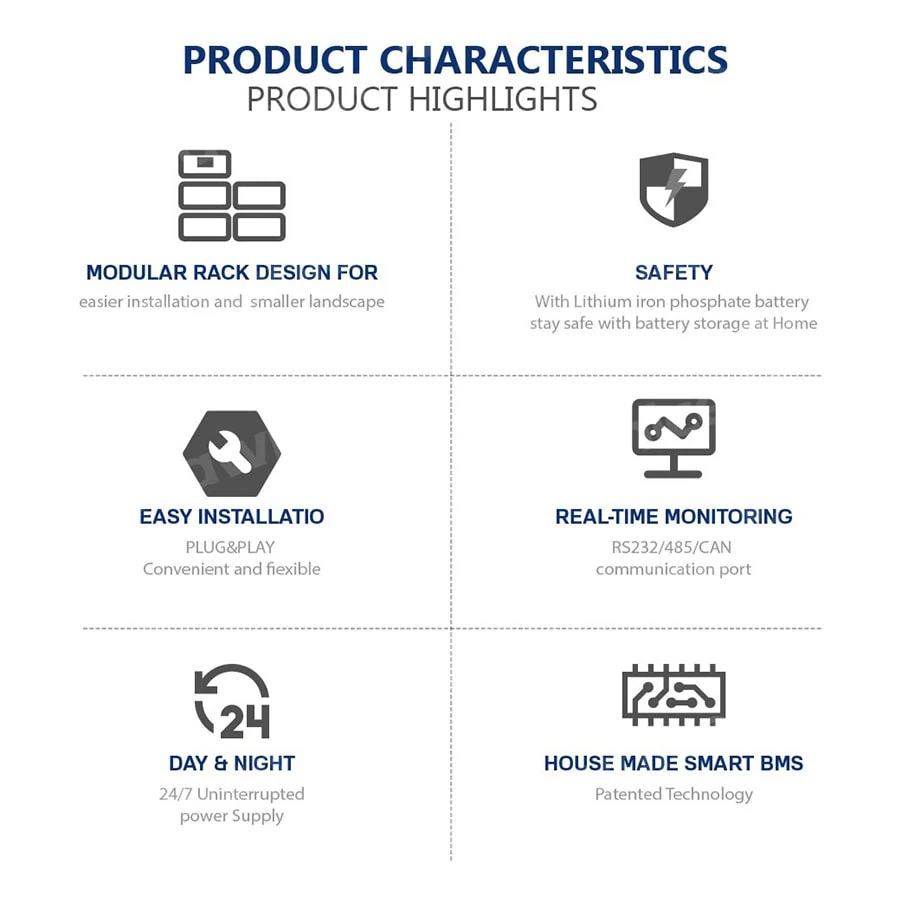

Product Overview
High-Grade Battery Cells: Built with top-tier A-grade LiFePO4 cells, this 10.24kWh high-voltage battery delivers extended cycle life, stable performance, and long-term reliability for residential energy storage.
Smart Monitoring via Bluetooth: Monitor battery performance in real time through Bluetooth-enabled remote access and intuitive mobile monitoring tools.
Compact, Modular Design: Lightweight and stackable, the unit supports flexible mounting and easy expansion — up to six layers can be stacked for larger capacities.
Quick Installation: A modular stackable structure reduces installation time and space needs, helping to lower labor and installation costs.
Advanced Safety & Management: Engineered with robust protection systems and intelligent energy management (BMS), the battery provides high efficiency, secure operation, and peace of mind for residential users.
Why Choose Stackable High-Voltage Batteries?
- Space-efficient: Stackable modules enable greater energy capacity in a smaller footprint.
- Scalable: Add modules as your needs grow — up to six in parallel for this range.
- Reliable performance: LiFePO4 chemistry and intelligent BMS deliver long cycle life and safe operation.
- Easy maintenance: Modular design simplifies service and replacement.
- Residential-ready: Designed for home backup, self-consumption optimization, and peak shaving.
Dawnice HZEB-LCT-5/2S Technical Specifications
| Model | HZEB-LCT-5/2S |
|---|---|
| Nominal Voltage | 102.4V |
| Cell Model/Configuration | 3.2V/100Ah/16S1P |
| Capacity (Ah) | 100Ah |
| Rated Energy (kWh) | 10.24kWh |
| Max Charge/Discharge Current (A) | 100A |
| Voltage Range (V) | 89.6–115.2V |
| Scalability | Up to 6 parallel |
| Communication | CAN / RS485 |
| Cycle Life | ≥6000 cycles @25°C, 80% DOD |
| Warranty / Design Life | 10 Years (Design life ≥15 years @25°C) |
| Weight (kg) | 179kg |
|---|---|
| Dimension (L/W/H) mm | 680 × 420 × 615 mm |
| Installation Mode | Stackable |
| IP Grade | IP20 |
| Safety (Pack) | UN38.3, MSDS, IEC62619 (CB), CE-EMC |
|---|---|
| Safety (Cell) | UN38.3, MSDS, IEC62619, UL1973, UL2054 |
| Protection | BMS, Breaker |
| Operating Temperature | Charge 0°C–50°C; Discharge -10°C–50°C |
|---|---|
| Altitude (m) | ≤2000m |
| Humidity | ≤90% (Non-condensing) |
