Solar Inverters

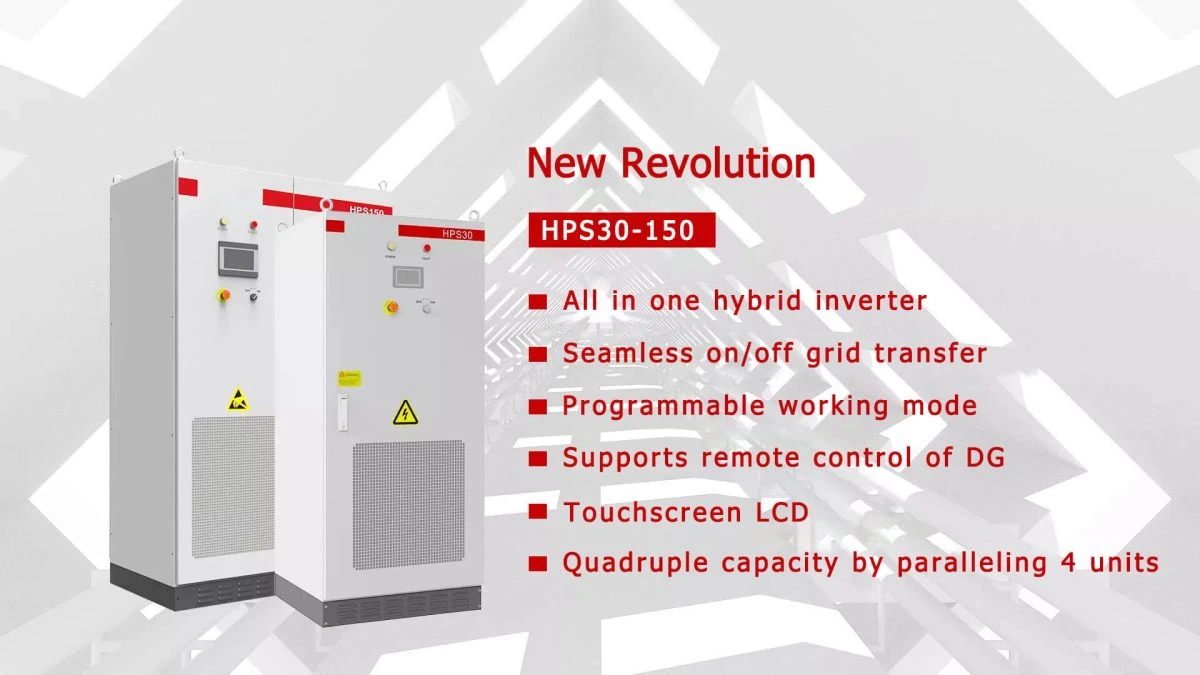

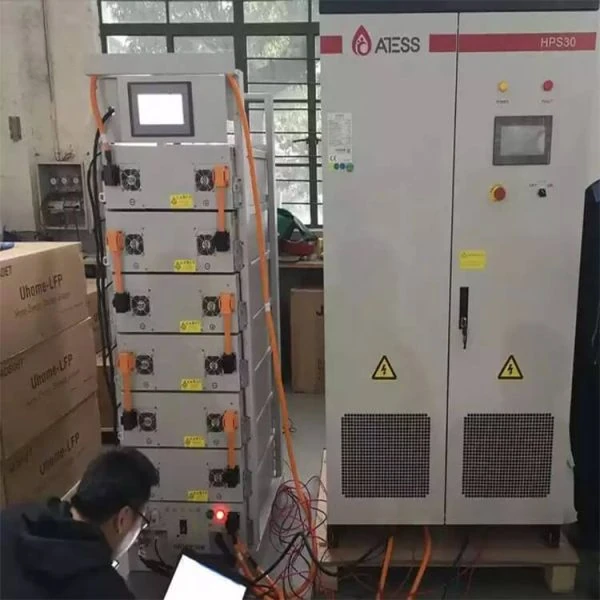

Atess HPS30 30kw Hybrid Inverter
Advanced energy management solution for commercial applications
30KW | Hybrid Inverter | High Voltage Battery | Commercial Grade
Atess HPS30 Specifications
- Product Name: Atess Hps 30 Hybrid Inverters
- Model Number: Atess HPS30
- Input Voltage: 480V-800V DC
- Output Voltage: 190-240VAC
- Output Current: 72-91A
- Output Frequency: 50/60HZ
- Size: 700/1660/600mm
- MPPT Input Voltage Range: 480V-800V DC
- Cooling: Forced-air
- Relative Humidity: 0-95% non-condensing
- Type: DC/AC Hybrid Inverter
- Protection Degree: IP20
Specification
Monitoring Solution
HPS30 Technical Specifications
| Apparent power | 33kVA |
|---|---|
| Rated power | 30kW |
| Rated voltage | 400V |
| Rated current | 43A |
| Voltage range | 360-440V |
| Rated frequency | 50/60Hz |
| Frequency range | 45-55/55-65Hz |
| THDi | <3% |
| PF | 0.8lagging-0.8leading |
| AC connection | 3/N/PE |
| AC input | 60kVA |
| Apparent power | 33kVA |
|---|---|
| Rated power | 30kW |
| Rated voltage | 400V |
| Rated current | 43A |
| THDu | ≤2%linear |
| Rated frequency | 50/60Hz |
| Overload capability | 110%-10 mins 120%-1 min |
| Max PV open-circuit voltage | 1000V DC |
|---|---|
| MAX PV power | 45kWp |
| PV MPPT voltage range | 480-800V DC |
| Battery voltage range at Max.charge power | 450V-600V |
| Battery voltage range | 352-600V |
| Max.charge power | 45kw |
| Max.discharge power | 33kW |
| Max.charge current | 100A |
| Max.discharge current | 93A |
| Protection degree | IP20 |
|---|---|
| Noise emission | <65dB(A)@1m |
| Operating temperature | -25°C~+55°C |
| Cooling | Forced-air |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | 6000m (derate over 3000m) |
| Dimension (W/H/D) | 950/1860/750mm |
| Weight | 505kg |
| Build-in transformer | Yes |
| Transfer between on/off grid | Automatic≤10ms |
| Standby consumption | <30w |
| Display | Touch screen |
|---|---|
| Communication | RS485/CAN |
| Certificate | CE, MEA, PEA, EN 61000-6-4:2007+A1:2011, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011 |
|---|
