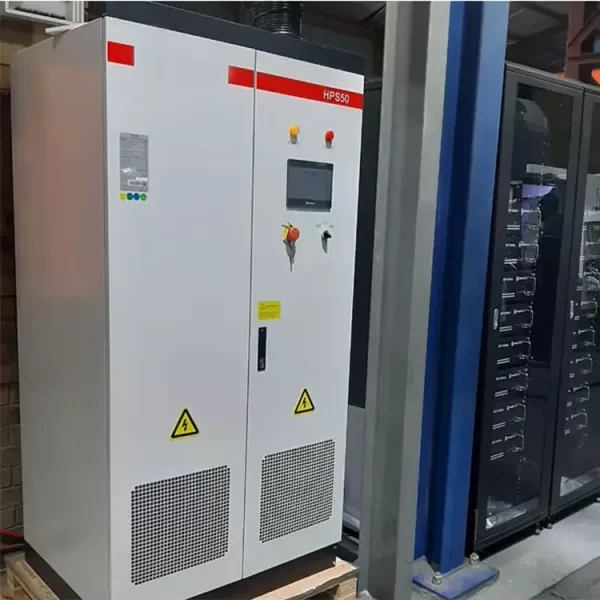

Atess HPS50 50kw Hybrid Inverter
Advanced energy management solution for commercial applications
50KW | Hybrid Inverter | High Voltage Battery | Commercial Grade
Atess HPS50 Specifications
- Product Name: Atess atess 50kw inverter
- Model Number: Atess hps50
- Apparent Power: 55kVA
- Rated Voltage: 400V
- Rated Current: 72A
- Voltage Range: 360V~440V
- Rated Frequency: 50/60Hz
- AC Connection: 3/N/PE
- AC Input: 100kVA
- Battery Voltage: 48V/96V/192V/240V/380V/400V
- Wave Form: Pure Sign Wave
- Type: DC/AC Hybrid Inverter
Specification

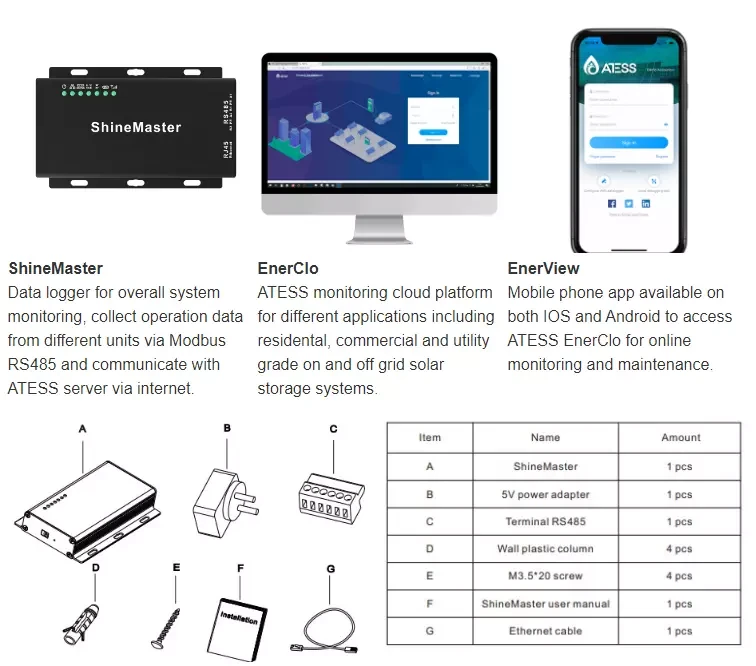

Monitoring Solution
HPS50 Technical Specifications
| Apparent power | 55kVA |
|---|---|
| Rated power | 50kW |
| Rated voltage | 400V |
| Rated current | 72A |
| Voltage range | 360V~440V |
| Rated frequency | 50/60Hz |
| Frequency range | 45-55/55-65Hz |
| THDi | <3% |
| PF | 0.8lagging-0.8leading |
| AC connection | 3/N/PE |
| AC input | 100kVA |
| Apparent power | 55kVA |
|---|---|
| Rated power | 50kW |
| Rated voltage | 400V |
| Rated current | 72A |
| THDu | ≤2%linear |
| Rated frequency | 50/60Hz |
| Overload capability | 110%-10 mins 120%-1 min |
| Max PV open-circuit voltage | 1000V DC |
|---|---|
| MAX PV power | 75kWp |
| PV MPPT voltage range | 480-800V DC |
| Battery voltage range at Max.charge power | 500V-600V |
| Battery voltage range | 352-600V |
| Max.charge power | 75kw |
| Max.discharge power | 55kW |
| Max.charge current | 150A |
| Max.discharge current | 156A |
| Protection degree | IP20 |
|---|---|
| Noise emission | <65dB(A)@1m |
| Operating temperature | -25°C~+55°C |
| Cooling | Forced-air |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | 6000m (derate over 3000m) |
| Dimension (W/H/D) | 1200/1900/800mm |
| Weight | 610kg |
| Build-in transformer | Yes |
| Transfer between on/off grid | Automatic≤10ms |
| Standby consumption | <30w |
| Display | Touch screen |
|---|---|
| Communication | RS485/CAN |
| Certificate | CE, MEA, PEA, EN 61000-6-4:2007+A1:2011, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011 |
|---|
