HUAWEI eKitEngine
Enhanced Layer 3 Core Switches — Make SME Network Easier and Smarter
Flexible Ethernet networking, diversified security control and rich management methods.

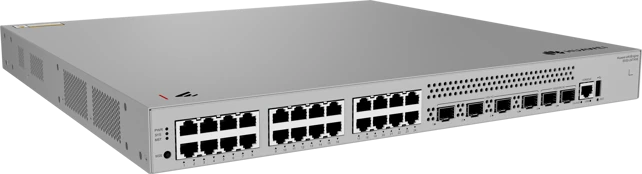

Huawei eKitEngine S530 series switches (S530 for short) are enhanced fully-managed gigabit switches designed for the small- and medium-sized business (SMB) market. They offer multiple models, such as those with twenty-four GE electrical ports, twenty-four GE optical/electrical hybrid ports, and forty-eight GE optical ports. These switches feature flexible Ethernet networking, diversified security control, rich management methods, higher performance, and extended service processing capabilities. Therefore, they can be widely used as core switches on a small campus network or access switches on a large or midsize campus network.
High Performance Forwarding
Advanced Security
iStack Scalability
Cloud & Remote Management
Energy Efficient Design
Rich L2/L3 Protocols
Easy O&M & Upgrades
QoS & Traffic Scheduling
Resilient HA Options
Comprehensive Access Control
| Product Model | eKitEngine S530-24T4XE / S530-24ST4XE / S530-24T8J4XE |
|---|---|
| Switching capacity | 168 Gbps (24-port variants) / 208 Gbps (24T8J variant) |
| Packet forwarding rate | 125 Mpps / 155 Mpps (model dependent) |
| Typical fixed ports | 24 x 10/100/1000BASE-T plus 4 x 10GE SFP+ (model-dependent combos available) |
| Chassis dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U |
| Typical power consumption | ~33–104 W depending on model and power modules |
| Operating temperature | −5°C to +50°C (0–1800 m); derating applies above 1800 m |
