Huawei eKitEngine
Unmanaged | Compact & Fanless | PoE Options Available
Reliable, plug-and-play access switching for SOHO and SMB

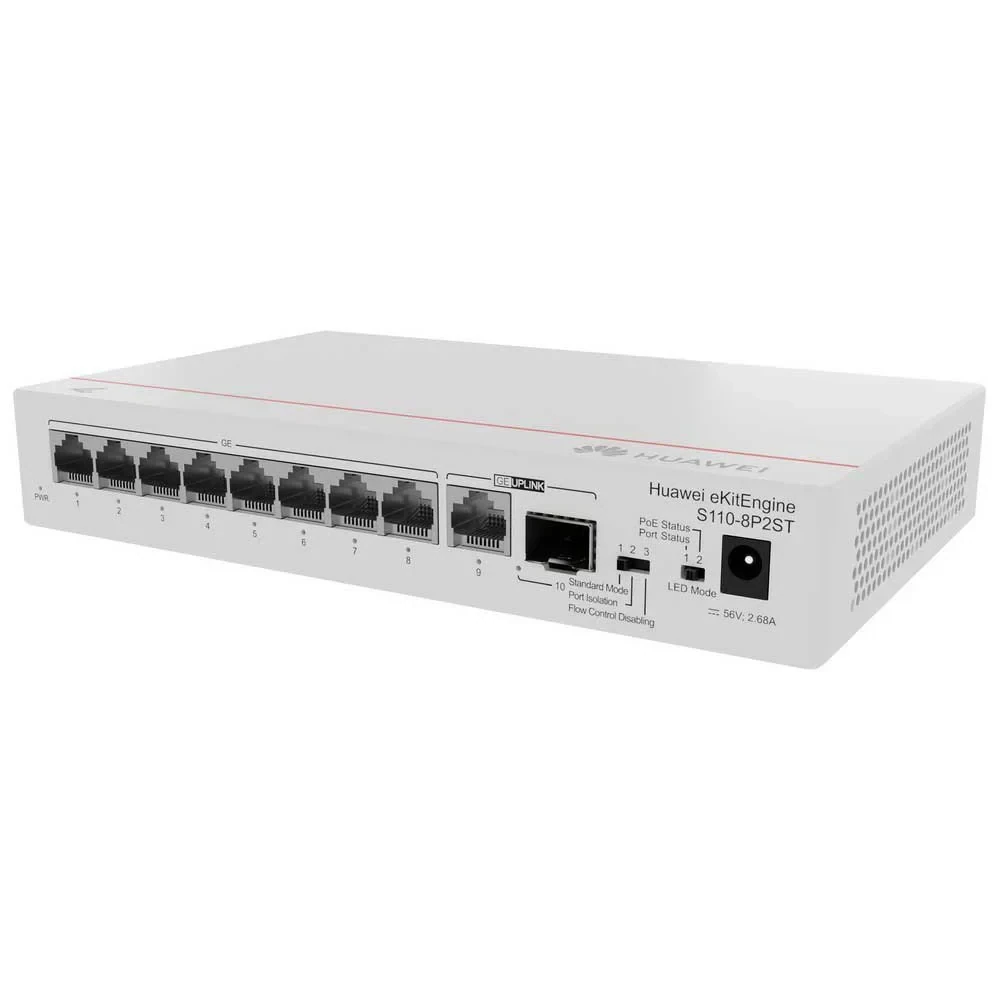

Huawei eKitEngine S110 series switches (S110 for short) are unmanaged switches designed for the distribution market outside China. The whole series adopts an all-new crystal-like appearance design with great visual impacts, winning itself the German Red Dot Design Award 2022. The newly launched colorways of Silk White and Silver Frost are becoming increasingly popular. The iconic Huawei logo on eKitEngine S110 series switches gives them a more refreshing look. In terms of aesthetics, a diamond cut design is employed to make the switches more elegant through an integrated and completely seamless surface with sleek corners. Therefore, eKitEngine S110 series switches can be widely used in access scenarios such as SOHO enterprises, and commercial stores.
Compact, Award-Winning Design
PoE Options (select models)
Energy Saving & Fanless
Multiple Working Modes
Plug-and-play, Management-free
| Specification | eKitEngine S110-8T2ST · eKitEngine S110-8P2ST · eKitEngine S110-16T2S · eKitEngine S110-16LP2SR · eKitEngine S110-24T2SR · eKitEngine S110-24LP2SR |
|---|---|
| Switching capacity | 20 Gbps · 20 Gbps · 36 Gbps · 36 Gbps · 52 Gbps · 52 Gbps |
| Packet forwarding rate | 14.88 Mpps · 14.88 Mpps · 26.78 Mpps · 26.78 Mpps · 38.69 Mpps · 38.69 Mpps |
| Downlink port | 8 x 10/100/1000BASE-T ports · 8 x 10/100/1000BASE-T ports (PoE+) · 16 x 10/100/1000BASE-T ports · 16 x 10/100/1000BASE-T ports (PoE+) · 24 x 10/100/1000BASE-T ports · 24 x 10/100/1000BASE-T ports (PoE+) |
| Uplink port | 1 x GE electrical port, 1 x GE SFP port · 1 x GE electrical port, 1 x GE SFP port · 2 x GE SFP ports · 2 x GE SFP ports · 2 x GE SFP ports · 2 x GE SFP ports |
| MAC address entry | 2K MAC address entries · 2K MAC address entries · 8K MAC address entries · 8K MAC address entries · 8K MAC address entries · 8K MAC address entries |
| Dimensions (H x W x D) | 35 mm x 210 mm x 130 mm · 35 mm x 210 mm x 130 mm · 43.6 mm x 320 mm x 210 mm · 43.6 mm x 442 mm x 260 mm · 43.6 mm x 442 mm x 160 mm · 43.6 mm x 442 mm x 260 mm |
| Weight (without packaging) | 0.46 kg · 0.91 kg · 1.74 kg · 3.0 kg · 1.8 kg · 3.2 kg |
| Input voltage | 12 V · 54 V · 100 V AC to 240 V AC, 50 Hz to 60 Hz · 110 V AC to 240 V AC, 50 Hz to 60 Hz · 100 V AC to 240 V AC, 50 Hz to 60 Hz · 110 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum power consumption | 8 W · Without PoE: 11 W; With PoE: 155 W (PoE: 124 W) · 12 W · Without PoE: 22 W; With PoE: 160 W (PoE: 124 W) · 17 W · Without PoE: 24 W; With PoE: 165 W (PoE: 124 W) |
| Long-term operating temperature | 0°C to 40°C (0 m to 1800 m) · 0°C to 40°C (0 m to 1800 m) · 0°C to 40°C (0 m to 1800 m) · 0°C to 45°C (0 m to 1800 m) · 0°C to 40°C (0 m to 1800 m) · 0°C to 45°C (0 m to 1800 m) |
| Storage temperature | -40°C to +70°C · -40°C to +70°C · -40°C to +70°C · -40°C to +70°C · -40°C to +70°C · -40°C to +70°C |
| Operating humidity | 5% to 95% · 5% to 95% · 5% to 95% · 5% to 95% · 5% to 95% · 5% to 95% |
| Service port surge protection | ±4 kV · ±4 kV · ±4 kV · ±4 kV · ±4 kV · ±4 kV |
| Working mode | Three working modes: standard mode, port isolation and flow control disabling · Three working modes: standard mode, port isolation and flow control disabling · Four working modes: standard mode, port isolation, port bonding, and flow control disabling · Four working modes: standard mode, port isolation, port bonding, and flow control disabling · Four working modes: standard mode, port isolation, port bonding, and flow control disabling · Four working modes: standard mode, port isolation, port bonding, and flow control disabling |
| Heat dissipation mode | Fanless, natural heat dissipation · Fanless, natural heat dissipation · Fanless, natural heat dissipation · Fanless, natural heat dissipation · Fanless, natural heat dissipation · Fanless, natural heat dissipation |
